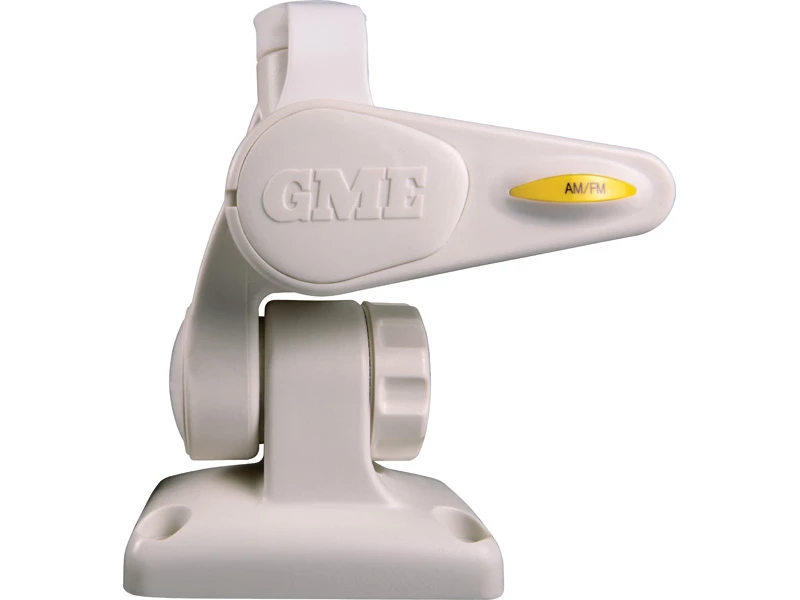

GME ABL012 Double Swivel Rectangular Antenna Base With Lead For AW36XX Whips

Built to withstand the harsh marine environment

The GME marine antenna system provides flexible mounting options
and a simple solution to marine antenna installation. The compact
and configurable GME ABL012 Double Swivel Rectangular
Antenna Base with Lead is suitable for VHF, 27 MHz, AIS
and AM/FM antenna whips. Utilising GME’s integrated PL259
connection technique, the coaxial cable remains connected to the
base rather than the antenna whip, permitting installation or
security removal of the whip in a matter of seconds. A splash proof
cap is provided for connector protection when the whip is
removed.

The size and flexibility of the rectangular base enables assembly
in either a single or double swivel configuration allowing flexible
installation in even the most challenging situations.

GME ABL012 Double Swivel Rectangular Antenna Base with Lead
Features:

• Multipurpose mounting antenna base that suits all AW36XX
  antenna whips
• Fast fit FME connectors with no soldering of plugs
  required
• Colour coded whip/base inserts for easy identification
• 5m white low loss coaxial cable included
• Ground independent design
