Prepare for marine emergencies

When you’ve used up all your options to save yourself, the reliable
GME Accusat MT603G 406MHz GPS EPIRB will get you the help you
need during an emergency.

Why Have an EPIRB?
An EPIRB can save your life and the lives of others on board by
providing rescue authorities your precise location in the event of
an emergency. GME EPIRBs are self-contained 406 MHz radio
transmitters that emit an internationally recognised distress
signal on the COSPAS-SARSAT satellite system.

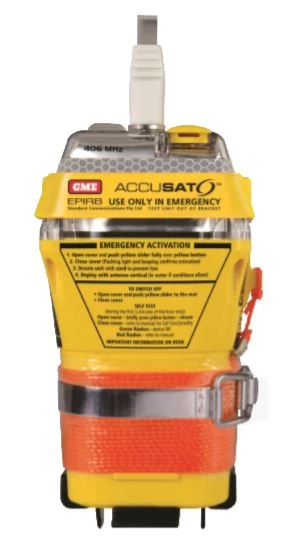

The GME Accusat MT603G 406MHz GPS EPIRB contains a unique
identity code which can be cross referenced to a database of
registered 406 MHz beacons, allowing the beacon’s owner and vessel
to be immediately identified in the event of an emergency.

GPS Equipped
The GME Accusat MT603G 406MHz GPS EPIRB features an integrated 66
channel GPS receiver which automatically acquires the position and
relays the latitude and longitude of the beacon along with the
personal identifier and emergency signal to rescue authorities.
Additionally, each unit includes an ultra-high performance solid
state strobe and 121.5MHz VHF homing beacon to assist in guiding
rescuers to your precise location.

Water Activation
The GME Accusat MT603G 406MHz GPS EPIRB will automatically activate
when out of the bracket and deployed in water. It can also be
manually activated by the operator in an emergency situation.

GME Accusat MT603G 406MHz GPS EPIRB Features:

Model number: MT603G
Category II Manual Release EPIRB
Channels 66 Channel GPS Receiver Location Accuracy
MEOSAR Ready
Operates with MEOSAR, LEOSAR and GEOSAR Satellite
Constellations
Activation: Water & Manual Activation
Operation Time: 48 Hours Minimum Operation Time
Warm Up: Zero Warm Up Digital Technology
Certification: COSPAS-SARSAT Certified. Internationally
Approved For Worldwide Operation (C/S T.001)
Battery Life: 6 Year
Warranty: 6 Year

GME Accusat MT603G 406MHz GPS EPIRB Specifications:
Physical

Operating Temperature: -20°C to +55°C Storage
Temperature: -30°C to +70°C
Weight: 550g (plus 98 g for bracket)
Compass Safe Distance: 0.7 m from magnetic navigational
device
Dimensions: 260 mm (H) x 102 mm (W) x 83 mm (D)
Materials: UV stabilised plastic chassis
Performance: AS/NZS 4280.1

Modes of Operation

Activated: UHF (406) and VHF (homer) complete with high
intensity strobe and audible activation alert
General Self Test: Comprehensive internal diagnostics with
visual and audible operator feedback. UHF test message (inverted
synchronisation compatible with portable beacon testers)
GPS Self Test: GPS acquisition test with visual and audible
operator feedback UHF test message containing GPS
coordinates

Operation

Activation: Water or Manually by operator
Bracket Type: Manual Release
Duration: 48 hours minimum
Transmission Delay: 121.5 and 406 MHz distress signals commence
~ 50 seconds after activation
UHF: 406.040 MHz, 5 W ± 2 dB, PSK (digital)
Strobe: 20 flashes/ minute at greater than 0.75 CD effective
intensity
COSPAS-SARSAT: Certified to C/S T.001 (Class 2) requirements
UHF-Protocol/Data: Serial number*, Radio call sign or MMSI
Repetition Period: 50s mean, digitally generated randomisation
VHF: 121.5 MHz, 25 mw. Min PERP@25°C

Battery

Replacement Period: Prior to expiry date marked on
case
Replacement Method: Service centre, or factory only (non-user
replaceable)
Chemistry: LiSO2 (2.4 g Lithium per cell)
Configuration: 2 ‘D’ type cells

Note: Batteries are not user
replaceable. Replace after emergency activation or reaching the
marked expiry date, the EPIRB must be returned to GME or its
authorised service centre for battery replacement.

Other Features:

GPS: Internal 66 channel high performance receiver with
quadrifilar helix antenna
Retention Lanyard: Reflector: Buoyant type approximately 5.5
metres long
SOLAS retro-reflective tape encircling unit above
waterline
Solid-state Strobe: High reliability solid state design exceeds
IMO requirements
Antenna: Flexible self straightening stainless steel
design
Bracket: Quick release mechanism (manual) Retained by four (4)
vessel fixing points

Note: *Standard factory setting,
subject to National requirements. Distributor-reprogrammable via
optical data interface. Specifications are subject to change
without notice or obligation.
