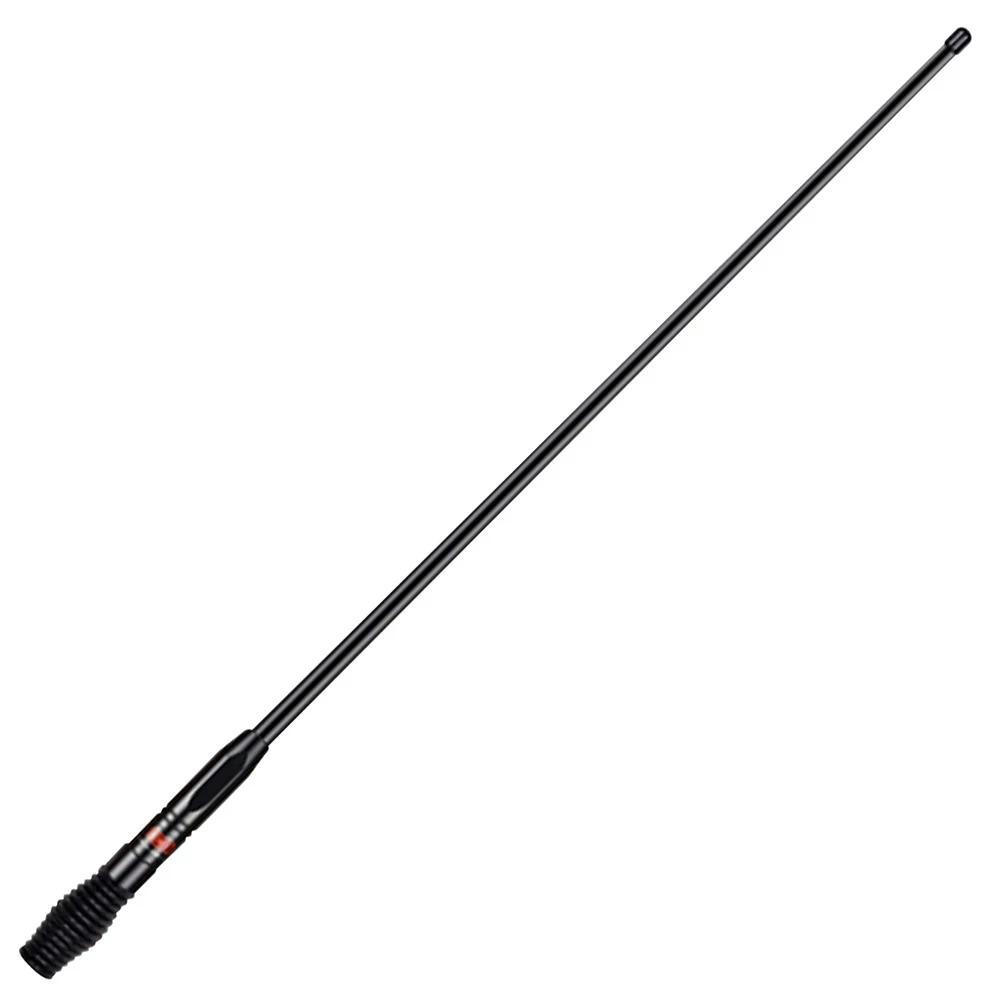

GME AT4705BA Multi-Band Cellular Antenna

Rugged, high performance antenna

Utilising the proven, rugged, mechanical design of the AE4700 series of UHF antennas in conjunction with an innovative PCB electrical circuit, the GME AT4705B Multi-Band Cellular Antenna sets a new benchmark for Multi-band cellular antennas. Covering the 700MHz, 850MHz, 900Mhz and 1800-2100MHz bands, the AT4705BA is a true Multi-band cellular antenna, with a SMA termination.

The AT4705BA delivers excellent LTE coverage across existing mobile phone networks ensuring you always remain connected, even in areas with limited or poor cellular network coverage.

GME AT4705BA Multi-Band Cellular Antenna Features:

• Covers 700, 850, 900, 1800-2100MHz bands
• 2.5 7dBi Gain
• 1200mm Removable whip
• Heavy duty, rugged design
• Pre-terminated SMA connector

GME AT4705BA Multi-Band Cellular Antenna Specifications:

• Frequency Band: 700, 850, 900, 1800-2100Mhz
• dBi (Gain): 2.5 7dBi
• Ground Dependance: Ground independent
• Construction Type: Mobile phone antenna, black fibreglass radome, heavy duty spring, 4.8 m of low-loss coaxial cable
• Height/Length mm: 1200 mm
• Cable and Connector: 4.8m low-loss, aluminium-shielded coaxial cable

What’s in the box:

• AT4705BA Multi Band Cellular Antenna
• 4.8m low-loss Coaxial cable and FME Connector
