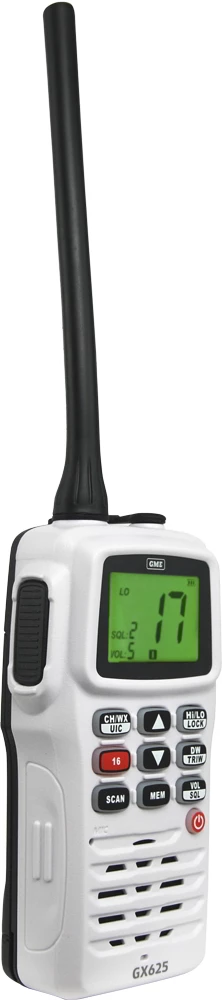

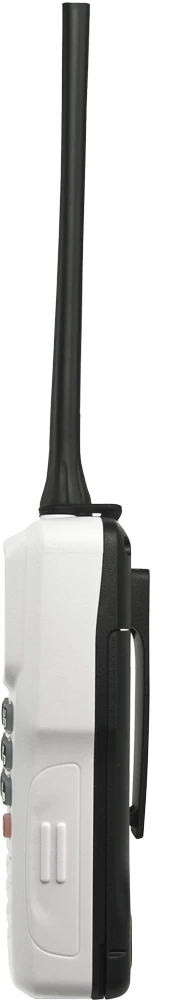

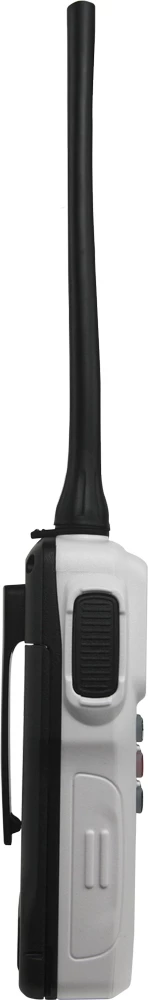

GME GX625W Handheld VHF Marine Radio White 5/1W

Ready to go when you are

The GME GX625W Handheld VHF Marine Radio features 5/1 Watt switchable transmission power, IP66 ingress protection, dual/ triple watch, programmable scan, and a large bright LCD display. Ideal for dinghies or tenders that need to keep in touch with the ‘mother ship‘, or small watercraft such as tinnies, kayaks and jet skis that may not have electrical systems or sufficient space for a conventional fixed-mount radio. And what’s more it boasts a class-leading 1200mAh Lithium-Ion (Li-Ion) battery pack, providing extended operating life and great stamina for a small handheld radio.

A 240V desktop charger, wrist strap, and belt clip are supplied as part of the standard package to ensure the GX625W is always ready to go when you are.

GME GX625W Handheld VHF Marine Radio Features:

• 5/1 Watt Switchable Transmission Power
• Large, Bright LCD Display
• IP66 Ingress Protection
• Programmable Scan
• International, USA & Canadian Channel Sets
• Flexible, Removable Antenna
• Dual & Triple Watch
• Floats with Auto Flash LCD

GME GX625W Handheld VHF Marine Radio Specifications:
General:

• Frequency Range: 156.025 to 163.275 MHz
• Oscillator: PLL
• Modulation: FM
• Channel Spacing: 25 kHz
• Frequency Stability: ±5 PPM
• Standard Operating Temperature:20°C ~ +55°C
• Nominal Working Voltage: 7.4 V DC (with Li-Ion battery)
• Battery Life (5% TX, 5% RX, 90% Stby): ≥8 Hrs
• Antenna Socket: SMA
• Built in Speaker: 40 mm Diameter, 8 Ohms
• Dimensions: 67 (W) x 153 (H) x 43 (D) mm
• Weight: 297 grams
• Battery: 7.4 V @ 1200 mAh Li-Ion
• DC Charger: 12 V DC @ 1 Amp
• Charging Current: 450 mA ± 50 mA
• Water resistant: IP66

Receiver:

• Sensitivity (12dB SINAD): -119 dBm
• Squelch Threshold: -119 dBm
• Tight: -113 dBm to -107 dBm
• Rated Audio Output @5% THD Speaker: 250 mW
• Adjacent Channel Rejection: ≥ 70 dB
• Image Rejection: ≥ 70 dB
• Intermodulation Rejection: ≥ 68 dB
• Maximum S/N @ 1 mV: ≥ 40 dB
• Spurious Response rejection (CH16): ≥ 70 dB
• Conducted Spurious Emission ≤ 70 dB
• Scan Time per Channel: 200 ms
• RX Current: Standby – 185 mA
• Max Audio Power – 380 mA

Transmitter

• Output Power: – 5W Low – 0.8W
• Frequency Tolerance: ± 5 PPM
• Max Modulation: ± 5 kHz
• Conducted Spurious Emission: ≤ -56 dB
• Audio Distortion @ 3 kHz Dev:
• Conducted Spurious Emission: ≤ -56 dB
• TX Current: High Power – 1.6 A
  Low Power – 0.9 A

GME GX625W Handheld VHF Marine Radio Instruction Manual
