GME GX700W VHF Marine Radio White

Powerful performance, compact design

The GME GX700W VHF Marine Radio is a compact
communication and safety device with innovative installation
options. Waterproof to IPX7, the GX700 is the ideal communication
tool for your boating lifestyle whether you’re sailing inland
waters, or heading offshore. Plus, its compact design makes
installation of the GX700 simple and enables installation in
locations where space is limited.

Crystal clear audio is delivered via the GX700’s dual speaker
system, and can be further enhanced by the addition of the SPK45
extension speaker. The GX700’s LCD display features large, easy to
read numbers and adjustable brightness. Designed with ease of use
in mind, the screen can be read from virtually any angle, day or
night.

Dual Watch, Triple Watch and two programmable priority channels
provide easy access to regularly used channels. Channel scanning is
programmable, making it easy to monitor all important
communications.

Available in White, the GX700’s sleek design will
compliment the appearance of your vessel and matches perfectly with
GME’s 27 MHz and Entertainment products.

GME GX700W VHF Marine Radio Features:

• 25/1 watt switchable power
• Waterproof speaker mic
• Compact design, overall depth only 75mm, flush mount depth only
  46mm
• Ingress protected to IPX7
• Dual and triple watch with programmable priority
  channel
• Two working channel memories

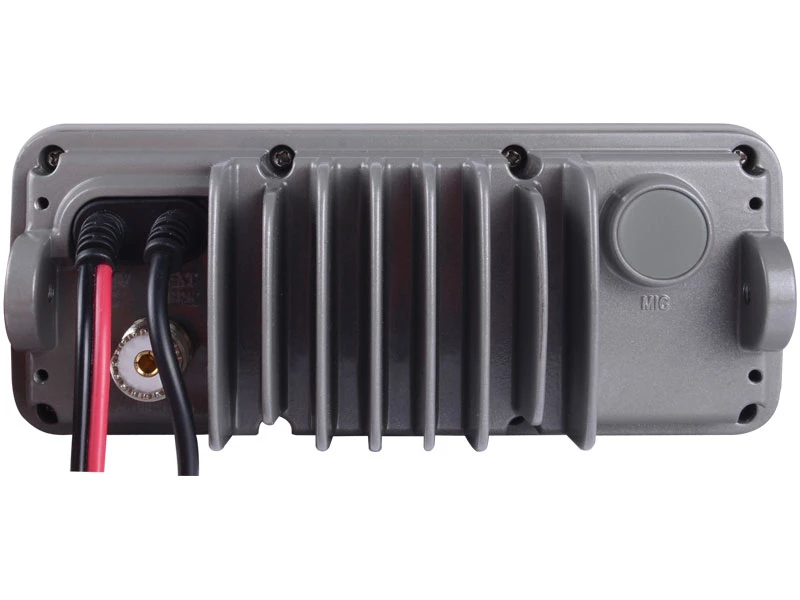

• Rear microphone input socket for flexible installation
• Multiple mounting options, backwards compatible with all GME
  radio installations
• Colour: White
• Cabin cover included

GME GX700W VHF Marine Radio Specifications:

General

• Frequency Range: TX155-165HZ
• Scanning Speed: 100 ms/channel
• Frequency stability: ±1.5 kHz over environmental
  extremes
• Modulation: FM

Transmitter

• Transmit Frequency Response: -6 dB per octave de-emphasis, 300
  Hz – 3 kHz, +1 – 3 dB
• Demodulated Audio Signal to Noise: >50 dB weighted
• Current Consumption: • High Power: < 5 Amps • Low Power: 850
  mA

Receiver

• Intermediate Frequencies: • 1st: 21.4 MHz • 2nd: 450
  kHZ
• Sensitivity: 120 dBm for 12 dB SINAD unweighted

Mechanical Specifications

• Dimensions (WxHxD): 164 x 65 x 77mm
• Weight: 585g
• Power Supply/Supply Voltage: 12 volt nominal • 10.5 – 15.6 volt
  max. range • Negative Earth
• Microphone Port: 6 pin socket
• Storage temperature: -10°C to +55°C

What’s in the Box:

• GX700 VHF Marine Radio
• Cabin Cover
• Mounting bracket and gimbal knobs
• Mounting hardware
• Microphone bracket
• DC lead
• Instruction manual

Note: Flush mount kit (part: MK008) sold separately.

GME GX700B VHF Marine Radio Instruction Manual
