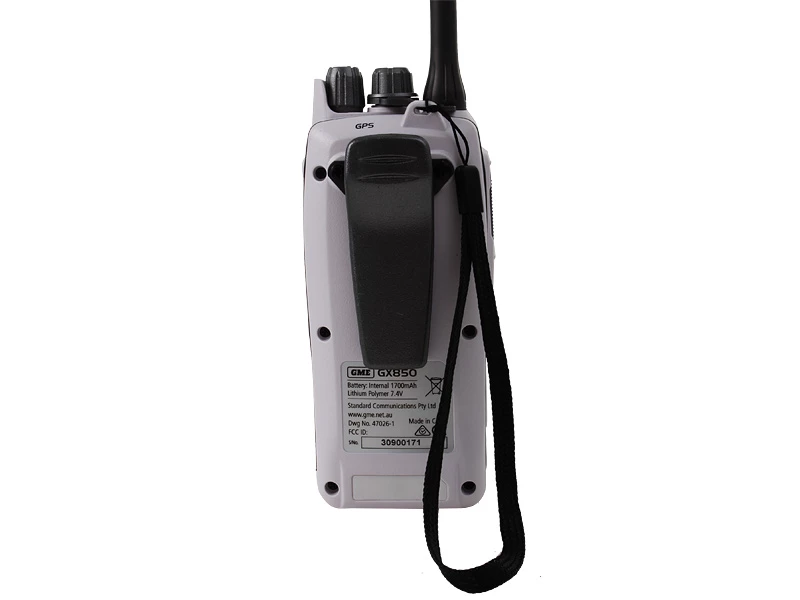

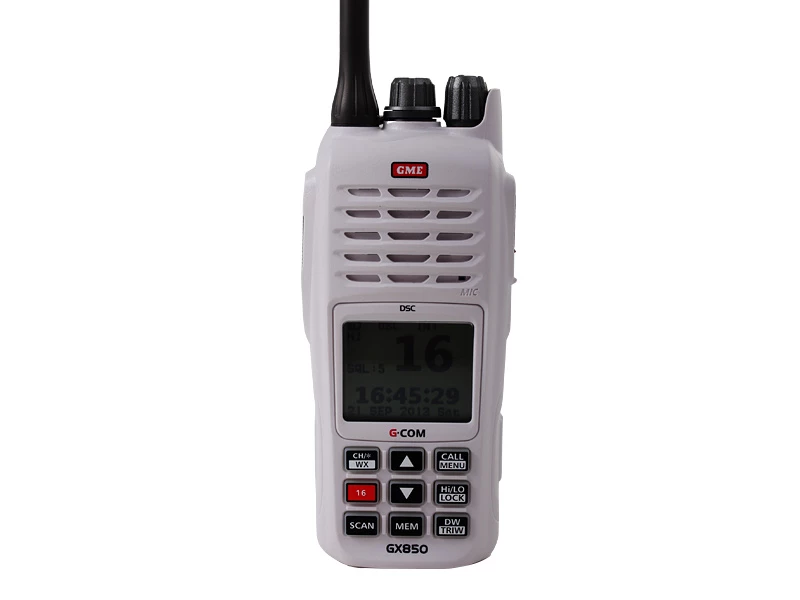

GME GX850W Floating Handheld VHF Radio With GPS

Marine safety in the palm of your hand

The GME GX850W Floating Handheld VHF Radio with
GPS is loaded with all the features you would normally
expect in a fixed mount radio but wait, there’s more! Boasting all
the functionality of the GX800W plus the inclusion of Digital
Selective Calling (DSC), Man Over Board (MOB) feature and in-built
GPS receiver. The GME GX850W is a high performance Handheld VHF
Marine Radio that puts marine safety right in the palm of your
hand. Much more than just a communication device, the GX850W could
save your life.

Digital Selective Calling
Use preformatted text instead of voice to transmit urgent or
important information to another radio including your GPS
co-ordinates and the MMSI number of your vessel.

Man Over Board (MOB) Alert
Send a Man Over Board (MOB) distress message to all vessels within
range at the press of a button.

On-Screen Speed Display
Monitor your speed via GPS in your preference of either Kms or
Knots.

Float and Flash
Waterproof to IP67, if this high performance radio is accidentally
dropped overboard, it will not only float, but the LCD will flash
brightly, ensuring easy location and retrieval.

5/1W Switchable Power
Reduce battery consumption by selecting the low power setting when
using the radio at close range, ideal for communications between
the mother ship and tender, or at full 5W power for communicating
over longer distances.

Large, Bright LCD Screen
Clear and easy to read, even in difficult lighting conditions.

Programmable Scanning including Dual and Tri Watch
Program the way in which your GX800 scans channels to suit your
activity. Dual and Tri Watch enable you to monitor a working or
club channel while still being able to receive important broadcasts
on Channel 16.

GME GX850W Floating Handheld VHF Radio with GPS
Features:

• Floats and Flashes if dropped overboard
• Waterproof to IP67
• 5/1 watt Switchable Power
• Large Dot-Matrix LCD
• Programmable Scan, Priority Scan, Dual and Tri Watch
• Integrated 1,700 mAh Lithium Polymer Battery
• Man Over Board (MOB) Alarm Function
• Integrated 48 Channel GPS Receiver
• Digital Selective Calling (DSC)

GME GX850W Floating Handheld VHF Radio with GPS
Specifications:

• Frequency range: 156.025 to 162.425 MHz
• Number of channels: 56 International
• Channel spacing: 25 kHz
• Frequency stability: ±5 PPM
• Modulation: FM
• Sensitivity: -119 dBm
• Digital Selective Calling (DSC): Class D (EN301025)
• Man Over Board (MOA): DSC Channel 70
• Std Operating Temperature: -20°C ~ 55°C
• Battery Life (TX 5%, RX 5%, Stby 90%): ≥8 hrs
• Built in Speaker: 40 mm Dia, 8 Ohms
• Dimensions (W x H x D): 67 x 153 x 43 mm
• Battery: 7.4V 1700 mAh Li-Polymer
• GPS Receiver: 48 Channel
• Waterproof: IP67

What’s in the Box

• GX850W Handheld Marine VHF Radio
• Belt Clip

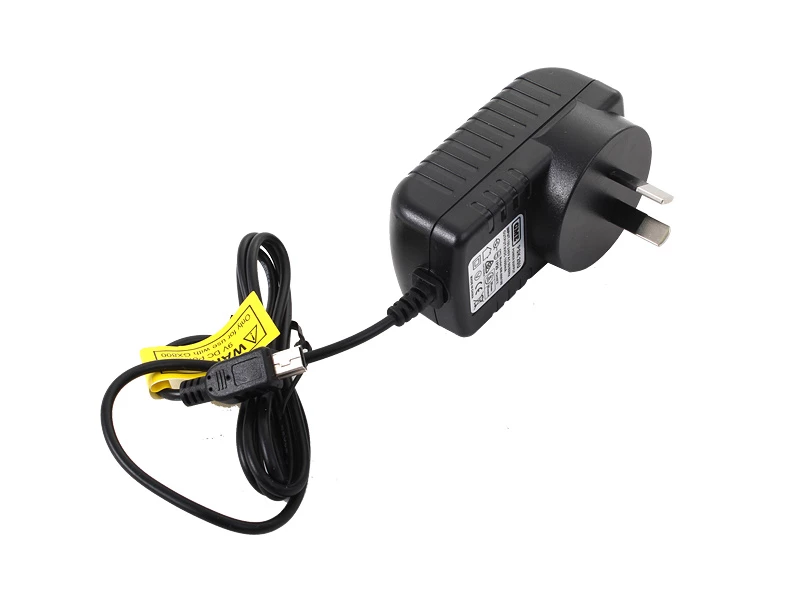

• 240V AC Charger
• Wrist Strap
• High Gain Flexible Antenna
• Instruction Manual

GME GX850W Floating Handheld VHF Radio Instruction Manual

GME GX850W Floating Handheld VHF Radio Product Brochure
