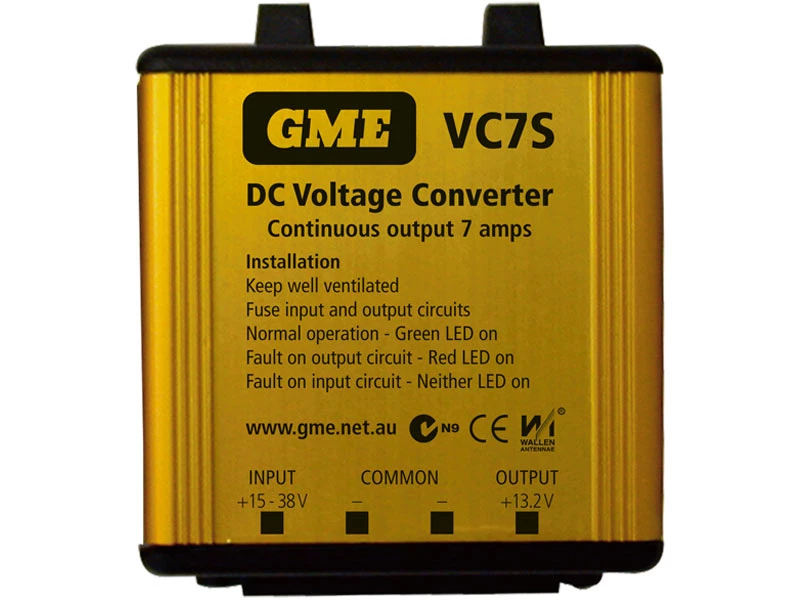

GME VC7S Voltage Converter 7 Amps

Genuine GME Voltage Converters

The GME VC7S Voltage Converter 7 Amps incorporates
an innovative concept in Voltage Converters, with built-in
protection for equipment, boat and vehicle electrics. It features
24-13.2V switch mode operation. The GME VC7S Voltage
Converter 7 Amps offers soft shutdown fault protection,
giving you high performance and high reliability. It is also
fuss-free with a quick and easy super-safe installation
process.

GME VC7S Voltage Converter 7 Amps Features:

• 24 – 13.2V Switch mode operation
• High performance, high reliability
• Soft shutdown fault protection
• Quick and easy super-safe installation process
• 7 Amp – 13.2 Volts DC output

GME VC7S Voltage Converter 7 Amps
Specifications:

• Type: Switch mode non-isolated
• Input (V DC): 15-38
• Output (V DC): 13.2
• Constant current 103.80% duty cycle (Amps): 6.8
• Intermittent current 30% duty cycle (Amps): 11
• Quiescent current: <15mA
• Oscillator frequency (kHz): 60
• Transient voltage (kV): Level 3 @ 2kV
• Protection: Overload reverse polarity short circuit soft
  shut-down
• Efficiency (approx): 90%
• Connection: 4 x spade
• Colour: Black – Gold
• Dimensions (mm): 32 H x 73 W x 85 D
• Weight: 198g including fixings
